LB-16-H-D-08-STS-C36-C92
$333.93
United States dollar ($) - USD
Product Overview

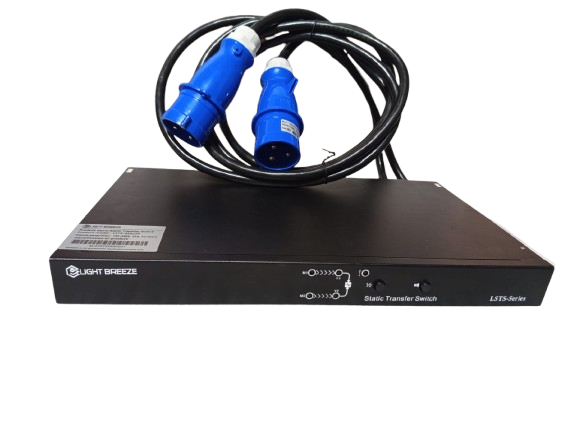

The LightBreeze LB-16-H-D-08-STS-C36-C92 is a professional-grade 32A horizontal Power Distribution Unit (PDU) designed for reliable power distribution in server racks, network cabinets, and industrial applications. Featuring STS (Static Transfer Switch) technology, this PDU provides enhanced power availability by supporting automatic source transfer for critical loads. Its robust MS Box construction, industrial-grade components, and MCB protection make it suitable for mission-critical environments.
LB-16-H-D-08-STS-C36-C92 Datasheet |
Key Features
- 32A power distribution capacity
- Advanced STS (Static Transfer Switch) functionality
- 8 output outlets (6 × IEC C13 and 2 × IEC C19)
- Horizontal rack-mount design
- Rugged MS Box construction
- High-conductivity copper internal busbar system
- Heavy-duty 6.0 mm² copper input cables
- 1.8-meter industrial-grade input cables
- Automatic source transfer capability for critical loads
- Designed for continuous 24/7 operation
Safety Features
- MCB Protection against overload and short-circuit conditions
- Automatic transfer between power sources through STS functionality
- High-quality copper conductors for reduced heat generation
- Industrial-grade input connections for secure power delivery
- Durable MS enclosure for mechanical protection
- Reliable power continuity for mission-critical equipment
- Robust insulation and internal wiring design
- Enhanced operational safety for rack-mounted installations
| Parameter | Specification |
|---|---|
| Brand | LightBreeze |
| Model | LB-16-H-D-08-STS-C36-C92 |
| Product Type | Power Distribution Unit (PDU) |
| Rated Current | 32A (RC) |
| Mounting Type | Horizontal |
| Feature Type | STS (Static Transfer Switch) |
| Section Type | MS Box |
| Total Output Ways | 8 |
| Outlet Configuration | 6 × IEC C13, 2 × IEC C19 |
| Protection Type | MCB (Miniature Circuit Breaker) |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Input Cable Size | 6.0 mm² Copper Cable |
| Cable Length | 1.8 Meter (Each Input Cable) |
| Input Connector | Industrial Socket |
| Operating Voltage | 220–240V AC |
| Frequency | 50/60 Hz |
| Body Construction | MS (Mild Steel) Box |
| Body Color | Industrial Black |
| Internal Conductor Material | High-Conductivity Copper Busbar |
| Mounting Orientation | Horizontal Rack Mount |
