LB-63-V-S-24-D-C320-C94-R
$244.34
United States dollar ($) - USD
Product Overview

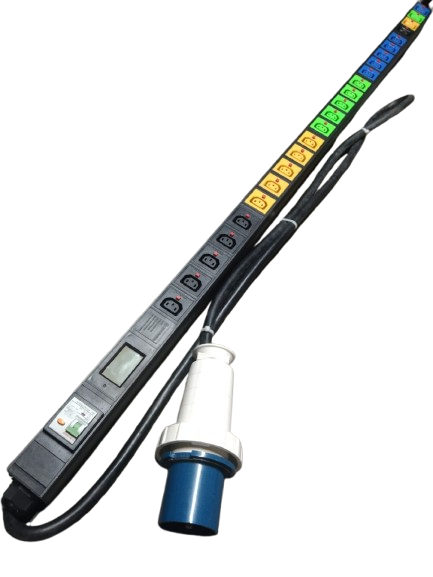

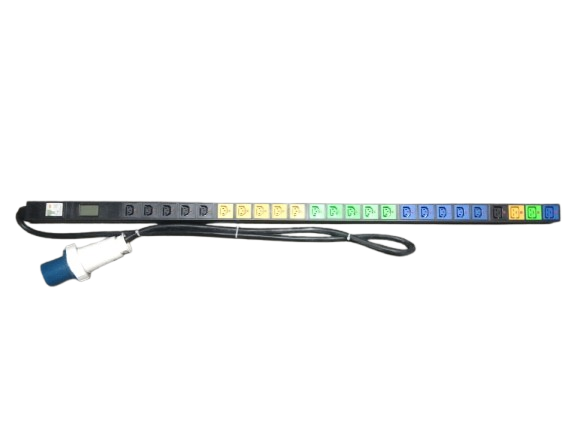

The LightBreeze LB-63-V-S-24-D-C320-C94-R is a high-capacity, industrial-grade Power Distribution Unit (PDU) designed for demanding data center, server rack, and critical infrastructure applications. Built for 63A heavy-duty power handling, this vertical PDU ensures stable and efficient power distribution with advanced monitoring and safety protection features. It integrates a digital amp meter for real-time load visibility, making it suitable for modern high-density IT environments.
Key Features
- High-capacity 63A power distribution capability
- 24 output outlets (20 × IEC C13 and 4 × IEC C19)
- Built-in digital amp meter for real-time current monitoring
- Vertical rack-mount design for efficient space utilization
- Heavy-duty 10.0 mm² copper input cable
- Industrial-grade aluminum housing with black finish
- High-conductivity copper internal busbar system
- Designed for continuous high-load operation
- Flexible installation with 1.8-meter input cable
- Suitable for mission-critical environments
Safety Features
- RCBO Protection (Residual Current + Overcurrent Protection combined)
- Overload Protection to prevent excessive load damage
- Short Circuit Protection for equipment and personnel safety
- Earth Leakage Protection to reduce electrical shock risks
- Industrial-grade insulation and housing design
- High-capacity copper conductors to minimize overheating
- Secure industrial input socket connection
- Real-time load monitoring via digital amp meter for preventive safety management
| Parameter | Specification |
|---|---|
| Brand | LightBreeze |
| Model | LB-63-V-S-24-D-C320-C94-R |
| Product Type | Power Distribution Unit (PDU) |
| Rated Current | 63A (RC) |
| Mounting Type | Vertical |
| Feature Type | Digital (with Amp Meter) |
| Display | Digital Amp Meter |
| Section Type | Single Section |
| Total Output Ways | 24 |
| Outlet Configuration | 20 × IEC C13, 4 × IEC C19 |
| Protection Type | RCBO (Residual Current Breaker with Overcurrent Protection) |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Earth Leakage Protection | Yes |
| Input Cable Size | 10.0 mm² Heavy-Duty Copper Cable |
| Cable Length | 1.8 Meter |
| Input Connector | Industrial Socket |
| Operating Voltage | 220–240V AC |
| Frequency | 50/60 Hz |
| Body Construction | Extruded Aluminum Alloy |
| Body Color | Industrial Black |
| Internal Conductor Material | High-Conductivity Copper Busbar |
| Mounting Orientation | Vertical Rack Mount |
