LB-16-H-D-12-B-C310-C92-R

Manufacturer’s Price

Light Breeze LB-16-H-D-12-B-C310-C92-R

Product Overview

The Light Breeze LB-16-H-D-12-B-C310-C92-R is a heavy-duty, rack-mountable Power Distribution Unit (PDU) engineered to deliver reliable and secure electrical distribution for high-density environments. Built for data centers, network closets, and industrial enclosures, this basic PDU utilizes a unique double-section layout and color-coded outlets for simplified circuit organization and phase identification.

Equipped with high-amperage IEC C13 and IEC C19 sockets alongside a built-in RCBO safety switch, it ensures robust electrical safety by safeguarding critical IT infrastructure against overcurrents and current leakage.

Input Connection

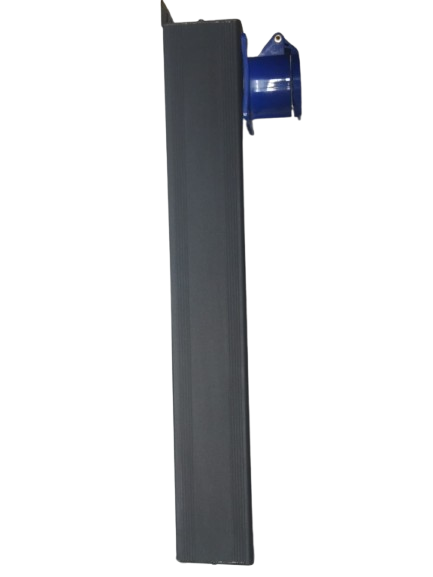

• Rear-Mounted Industrial Input Socket: The unit features a specialized industrial socket mounted directly onto the rear side of the chassis, rather than using a fixed, hardwired power cord.

• Detachable & Extendable Cable Design: Because the unit utilizes a built-in industrial socket receptacle rather than a fixed captive wire, the input power cable is fully detachable and can be extended or swapped as per one’s will. This allows data center managers and technicians to connect a custom-length industrial power cord (matching an IEC 60309 or compatible industrial plug) tailored precisely to the distance of the facility’s power drop or utility source.

• Flexible Infrastructure Integration: This design choice eliminates unnecessary cable clutter from excess cord length or the risk of a cord being too short, facilitating flexible power integration in tight server racks or remote industrial control panels.

Key Features

• High-Capacity Power Delivery: Rated for up to 16A continuous current capacity to handle demanding server and networking loads.

• Double-Section Layout: Dual-row layout optimizes high-density port spacing in a horizontal rack-mount footprint.

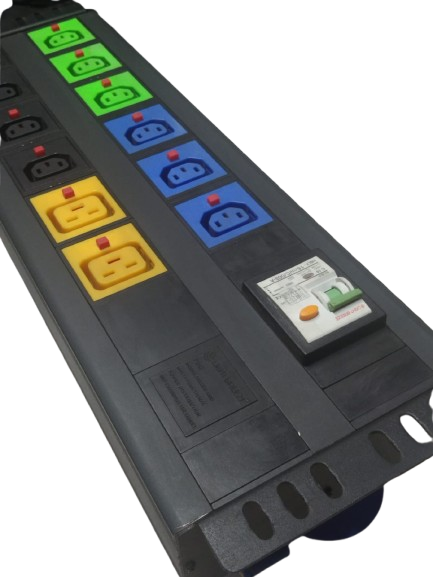

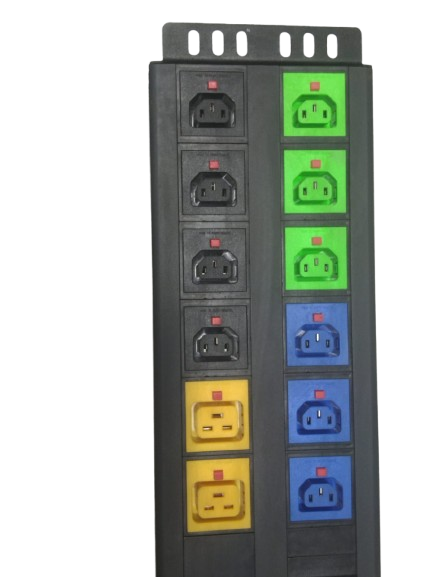

• Color-Coded Sockets: Clear visual division of outlet banks (Black, Green, Blue, and Yellow) streamlines load balancing and device troubleshooting.

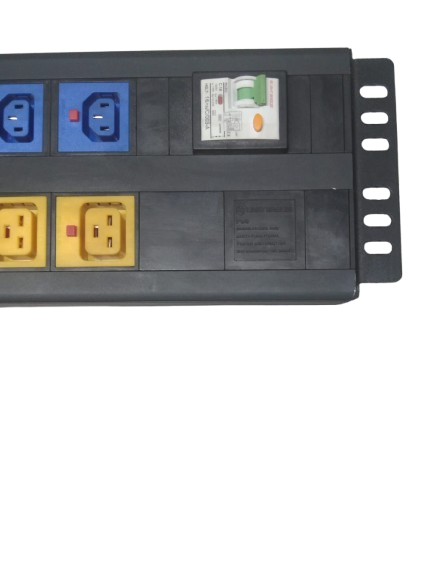

• Integrated RCBO Protection: Combines overcurrent, short-circuit, and residual current (leakage) protection into a single accessible switch.

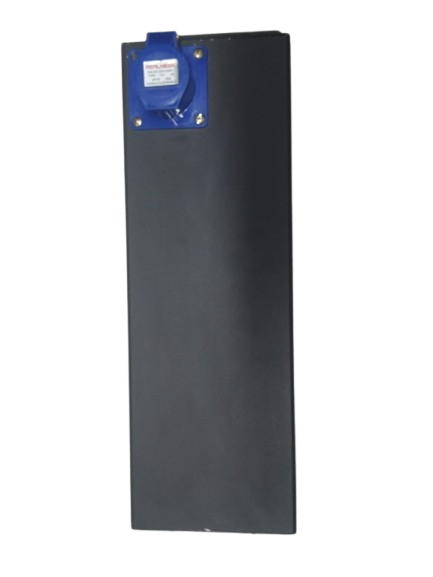

• Industrial Input Connection: Features a heavy-duty, rear-mounted blue industrial plug socket for secure, high-current utility power coupling.

• Ruggedized Construction: Encased in a durable metal chassis designed to withstand continuous, high-temperature operations in server enclosures.

Safety & Structural Design

Notice on Operational Safety: > The integrated RCBO safety switch features a quick-disconnect mechanical lever alongside a dedicated test button to ensure swift troubleshooting and routine breaker mechanism verification without disconnecting your upstream supply.

• Tripping Mechanism: Advanced RCBO circuit protection immediately isolates the equipment load if an earth leakage current or overload spike is detected, preventing damage to downstream server hardware.

• Secure Mounting: Integrated industrial-grade side mounting flanges feature standard elongated cutouts for effortless attachment to standard IT equipment racks and industrial frames.

LB-16-H-D-12-B-C310-C92-R Datasheet
