LB-32-H-D-08-STS-C36-C92-M
$447.96
United States dollar ($) - USD
Product Overview

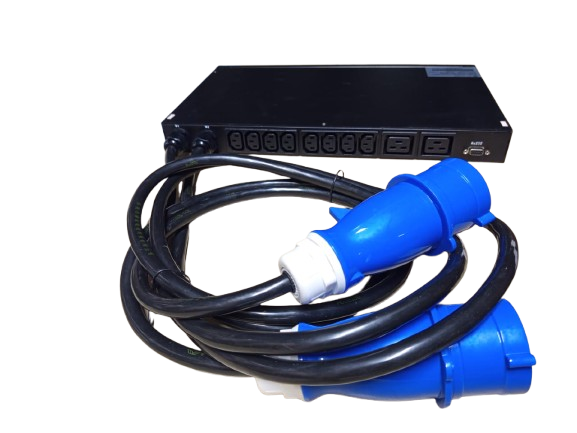

The LightBreeze LB-32-H-D-08-STS-C36-C92 is a high-performance 32A Horizontal Static Transfer Switch (STS) Power Distribution Unit (PDU) engineered for critical power applications in data centers, server rooms, and network infrastructure. Designed with an MS Box enclosure, this PDU ensures reliable power delivery and automatic transfer between power sources to maximize equipment uptime and operational continuity.
LB-32-H-D-08-STS-C36-C92-M Datasheet
Safety Features
- MCB Protection against overload and short-circuit faults
- Automatic power source switching through STS technology
- High-quality copper conductors for reduced heat generation
- Industrial-grade power input connections
- Durable MS enclosure for enhanced mechanical protection
- Secure and stable power delivery to connected equipment
- Robust internal insulation system
- Designed for high-availability power environments
Applications
- Data Centers
- Server Rooms
- Network Cabinets
- Telecommunications Infrastructure
- Enterprise IT Systems
- Cloud Hosting Facilities
- Industrial Automation Systems
- Banking and Financial Infrastructure
- Healthcare IT Equipment
- Mission-Critical Power Distribution Systems
| Parameter | Specification |
|---|---|
| Brand | LightBreeze |
| Model | LB-32-H-D-08-STS-C36-C92 |
| Product Type | Static Transfer Switch (STS) PDU |
| Rated Current | 32A (RC) |
| Mounting Type | Horizontal |
| Feature Type | STS (Static Transfer Switch) |
| Section Type | MS Box |
| Total Output Ways | 8 |
| Outlet Configuration | 6 × IEC C13, 2 × IEC C19 |
| Protection Type | MCB (Miniature Circuit Breaker) |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Input Cable Size | 6.0 mm² Copper Cable |
| Cable Length | 1.8 Meter (Each Input Cable) |
| Input Connector | Industrial Socket |
| Operating Voltage | 220–240V AC |
| Frequency | 50/60 Hz |
| Body Construction | MS (Mild Steel) Box |
| Body Color | Industrial Black |
| Internal Conductor Material | High-Conductivity Copper Busbar |
| Mounting Orientation | Horizontal Rack Mount |
